aluplast Reinforcement 45x47x2.5 - 269047

Reinforcement profiles systems aluplast

Go to page aluplast

Characteristics aluplast Reinforcement 45x47x2.5

title	aluplast Reinforcement 45x47x2.5
Reference	269047
Profile type	Reinforcement profiles
The moment of inertia Ix	10.2000 cm4
Moment of inertia Iy	9.0000 cm4
Width	45.00 mm
Height	47.00 mm
Thickness	2.50 mm
Material profile system	steel
Brand, brand	aluplast
Using systems	aluplast energeto neo

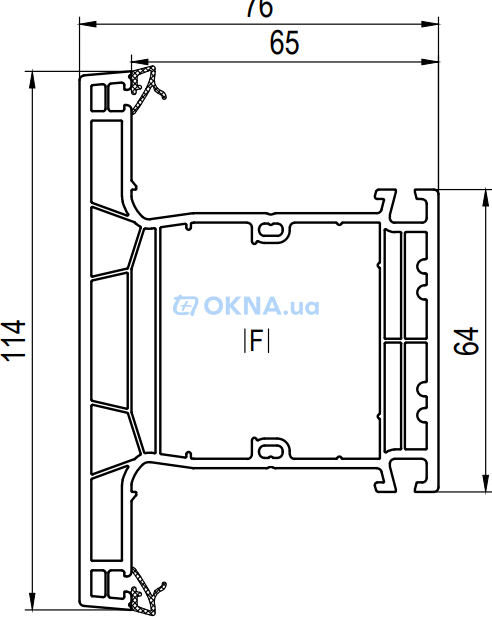

Mullions — used with the profile aluplast Reinforcement 45x47x2.5
