Vorne 25/85/2200 rail lock, latch, shear bolt More details:

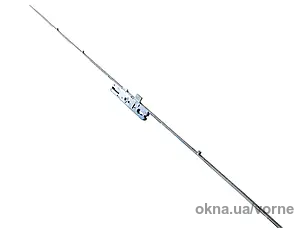

Lock-rail Vorne 25/85/2200 latch, bolt, shear

Description Characteristics Ordering information
Multi-point lock-rail Vorne 2200/25/85 latch, bolt, with handle control, shear, with the possibility of additional connection.
The door lock is designed for metal-plastic structures (for PVC profile), which has a 16 mm hardware groove. The lock is equipped with a Falevu latch, which is controlled by pressing the handle down. To lock the lock, you need to lift the handle up, while the bolt is extended and four roller pins on the rail are moved down, this ensures a tight pressure of the door seal to the frame. Turning the key of the cylinder mechanism locks it in the closed state and blocks the pressure of the handle in the down position. The rail is made of steel and has a multi-layer anti-corrosion coating. The body is steel, galvanized. Components inside the lock are alloy TsAM. This lock has a toothed connection on the edges of the movable (inner) bar and allows you to add additional pressure points using extensions, corner elements.

Main parameters:
Dornmass (backset): 25 mm
Center distance: 85 mm
Rail length: 2200 mm
Lock body size:
Width: 15 mm
Height: 225 mm
Depth: 42 mm
Dimensions of the pin arrangement:
(all dimensions are indicated relative to the center of the handle square, the pin arrangement is from bottom to top)

Pin A: 766 mm
Pin B: 332 mm
Pin B: 408 mm
Pin D: 724 mm More details:
Technical characteristics
Item62110
Marking CompanyV.6414.1602
