Lock-rail Vorne 35/92/2200 bolt, bolt, clear More details:
600 UAH
to order
Price per m3/(m2·h).
+380 67 461 XX XX +380 67 461 4938
Kyiv, Stryi, Dnipro
Vendor:
VORNE
Lock-rail Vorne 35/92/2200 latch, bolt, shear
Description Characteristics Ordering information

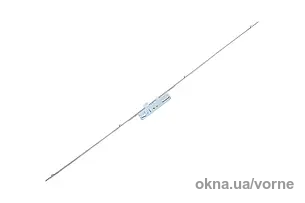

Multi-point lock-rail Vorne 2200/35/92 latch, bolt, with handle control, shear, with the possibility of additional connection.
The door lock is designed for metal-plastic structures (for PVC profile), which has a 16 mm hardware groove. The lock is equipped with a Falevu latch, which is controlled by pressing the handle down. To lock the lock, you need to lift the handle up, while the bolt is extended and four roller pins on the rail are moved down, this ensures a tight pressure of the door seal to the frame. Turning the key of the cylinder mechanism locks it in the closed state and blocks the pressure of the handle in the down position. The rail is made of steel and has a multi-layer anti-corrosion coating. The body is steel, galvanized. Components inside the lock are alloy TsAM. This lock has a toothed connection on the edges of the movable (inner) bar and allows you to add additional pressure points using extensions, corner elements.
Main parameters:
Dornmass (backset): 35 mm
Center distance: 92 mm
Rail length: 2200 mm
Lock body size:
Width: 15 mm
Height: 225 mm
Depth: 53 mm
Dimensions of the pin arrangement:
(all dimensions are indicated relative to the center of the handle square, the pin arrangement is from bottom to top)
Pin A: 766 mm
Pin B: 332 mm
Pin B: 352 mm
Pin D: 668 mm More details:
Description Characteristics Ordering information
Multi-point lock-rail Vorne 2200/35/92 latch, bolt, with handle control, shear, with the possibility of additional connection.
The door lock is designed for metal-plastic structures (for PVC profile), which has a 16 mm hardware groove. The lock is equipped with a Falevu latch, which is controlled by pressing the handle down. To lock the lock, you need to lift the handle up, while the bolt is extended and four roller pins on the rail are moved down, this ensures a tight pressure of the door seal to the frame. Turning the key of the cylinder mechanism locks it in the closed state and blocks the pressure of the handle in the down position. The rail is made of steel and has a multi-layer anti-corrosion coating. The body is steel, galvanized. Components inside the lock are alloy TsAM. This lock has a toothed connection on the edges of the movable (inner) bar and allows you to add additional pressure points using extensions, corner elements.
Main parameters:
Dornmass (backset): 35 mm
Center distance: 92 mm
Rail length: 2200 mm
Lock body size:
Width: 15 mm
Height: 225 mm
Depth: 53 mm
Dimensions of the pin arrangement:
(all dimensions are indicated relative to the center of the handle square, the pin arrangement is from bottom to top)
Pin A: 766 mm
Pin B: 332 mm
Pin B: 352 mm
Pin D: 668 mm More details:
Technical characteristics
| Item | 62112 |
| Marking Company | V.6124.1602 |
